基本資料

型號編碼

0194690705

型號全稱

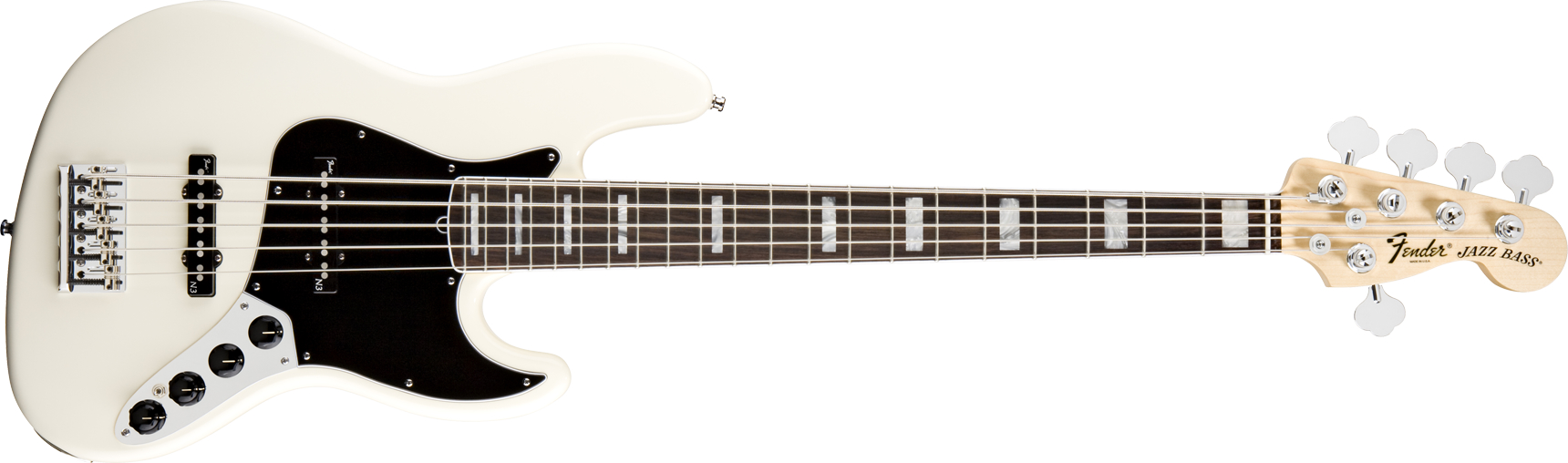

American Deluxe Jazz Bass V (Five String)

系列

American Deluxe

顏色

Olympic White

琴身

琴身材料

Select Alder

琴身漆面

Urethane

琴身輪廓

Jazz Bass

琴身包邊

琴頸

琴頸材料

Maple

琴頸漆面

Gloss Urethane Front, Satin Urethane Back

琴頸輪廓

Asymmetrical "C"

有效弦長

34" (864 mm)

琴頸包邊

Bound Fingerboard

指板

Rosewood

指板半徑

9.5"-14" Compound Radius (241 mm-355.6 mm)

品數

21

品絲規格

Medium Jumbo

弦枕

Bone

弦枕寬度

1.875" (47.6 mm)

品記

Black or White Pearloid Block

琴頸調節桿

Posiflex Graphite Neck Support Rods

調節桿螺母

3/16" Hex Adjustment

琴頭

琴頸金屬板

5-Bolt Asymmetrical

電路系統

琴橋拾音器

Noiseless N3 Single-Coil Jazz Bass

琴頸拾音器

Noiseless N3 Single-Coil Jazz Bass

中間拾音器

控制系統

Master Volume, Pan Pot (Pickup Selector), Treble Boost/Cut, Midrange Boost/Cut, Bass Boost/Cut, Active/Passive Mini Toggle

拾音器切換檔位

Pan Pot

拾音器配置

SS

特殊電路系統

Active/Passive Mini-Toggle Switch

硬件

琴橋

4-Saddle High-Mass Vintage (String-Through-Body or Topload)

硬件表面

Chrome

弦鈕

Fender Lightweight Vintage-Style Keys with Tapered Shafts

護板

3-Ply Black

檔位帽

控制旋鈕

Black Plastic

其它

琴弦

Fender USA Bass 8250/5M, NPS, (.045, .065, .085, .110TW, .130TW Gauges)

特點

New N3 Noiseless Pickups, Improved electronics resulting in increased headroom, tighter low-end response, Active/passive toggle switch, Passive tone control for passive mode, Strong Arm string retainer, HMV bridge, Genuine bone nut, Tinted neck, Posiflex Graphite Neck Support Rods, 5-Bolt Neck Plate, Contoured Heel for Easier Access to Upper Frets, Rolled Fingerboard Edges, Highly Detailed Nut and Fret Work, Flat head screws on battery compartment (for easy changes with a coin or pick), Black pearl (or white pearloid) block inlays, Neck binding

內含配件

Cable, Strap, Strap Locks

配件

背帶鎖

Schaller Strap Lock System

擦琴布
